TISS9836

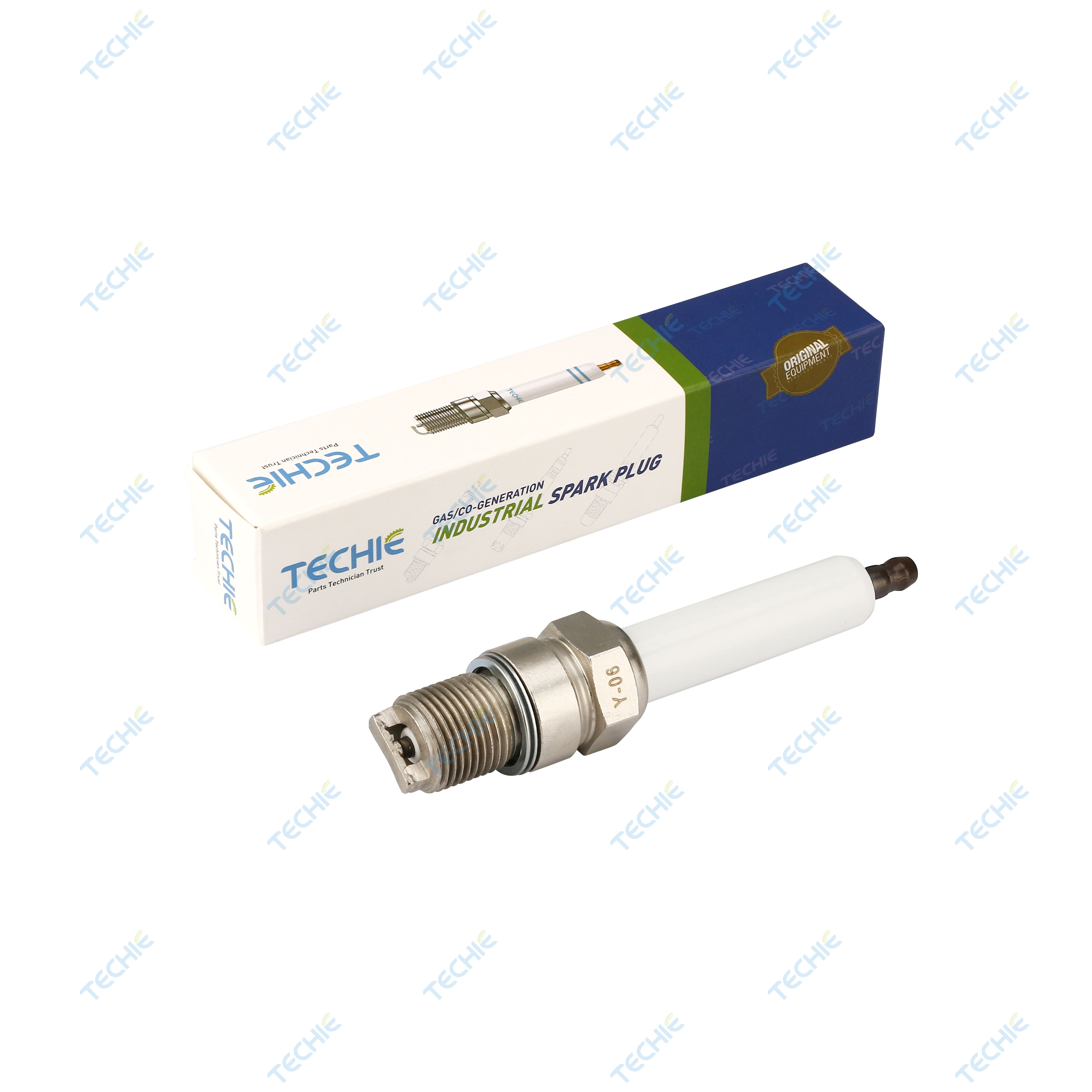

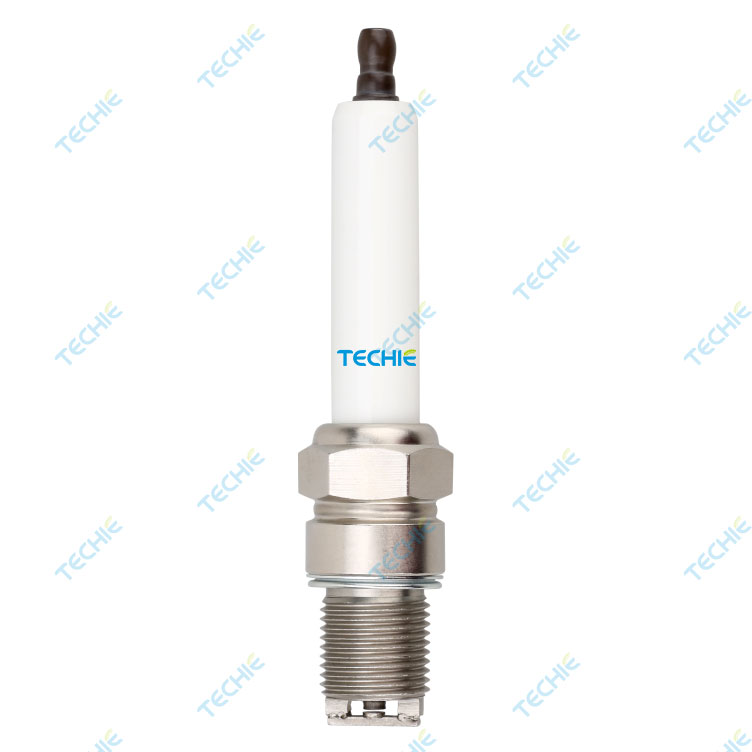

TECHIE high-performance spark plugs for Wartsila 34SG / 50SG / 20V34SG. Replaces Champion FB78WW

    Engine Applications

    Wartsila / Wärtsilä: 34SG / 50SG / 20V34SG
    Caterpillar: 3520 B
    Rolls Royce Marine: 35:40 B-gas engine
    MAN: V35 / 44G

    Target applications:

    Biogas
    Industrial stationary engines
    Fast Power & Resilience
    Natural Gas
    Landfill Gas

    Why are Techie Spark Plugs the best choice for your engine?

    PROVEN RELIABILITY
    Developed by our engine experts, with continuous feedback from our customers—our high-quality spark plug portfolio meets our strict standards.

    We run each and every spark plug through a rigorous evaluation during the design process. Our expertise shows in our delivery of several hundred thousand spark plugs every year.

    COST REDUCTION
    Our spark plugs match OEM quality at less than half the price of the originals.

    FAST DELIVERY
    TECHIE boasts a fully stocked inventory and a robust network, enabling us to ship products immediately after payment and deliver them anywhere in the world within ten days.

    COMPREHENSIVE RANGE
    TECHIE offers custom-made spark plugs for virtually any gas genset worldwide, with our range covering over 95% of all gas gensets globally.

    Cross Reference
    CHAMPION / Federal Mogul: FB78WW
    Motortech: MBP1800
    Rolls-Royce: 710875/ 707447 / FB11047A
    Basic Technical Data
    Code: TISS9836
    Thread Diameter: M18*1.5
    Thread Reach: 19.6 mm
    Hex Size: 22.2 mm
    Center Electrode: Iridium
    Ground Electrode: Iridium
    Gap size: 0.3 mm
    Resistance: 3-9 KΩ
    Torque Value: 45-50 Nm
    Service Life:
    Net Weight: 0.11 kg
    1. Hot Lock shell seal delivers superior push out performance.

    2. Easier to regap. Less susceptible to bridging the gap.

    3. Long Life Iridium electrode material

    4. Optimized gas combustion for high efficiency & long service life.

    5. Robust particle-resistant design.

    6. Designed for high-compression and aggressive environments.

    7. Manufactured for superior performance and long-lasting durability.

    7. Withstands today's high-temperature/high-load service environments.

    8. IRIDIUM technology for environmental benefits, Supports CO2 reduction.

    9. INSULATOR. Manufactured with high-grade alumina powder for exceptional dielectric strength and thermal conductivity at high temperatures.

    10. 360 ºLASER WELDING. State of the art manufacturing technology

    11. Thin walled copper core center electrode for outstanding heat dissipation and extended plug life.

    12. low voltage for great ignition reliability & better flame front propagation and high erosion resistance.

    13. Vital to Iridium center electrode quality.
