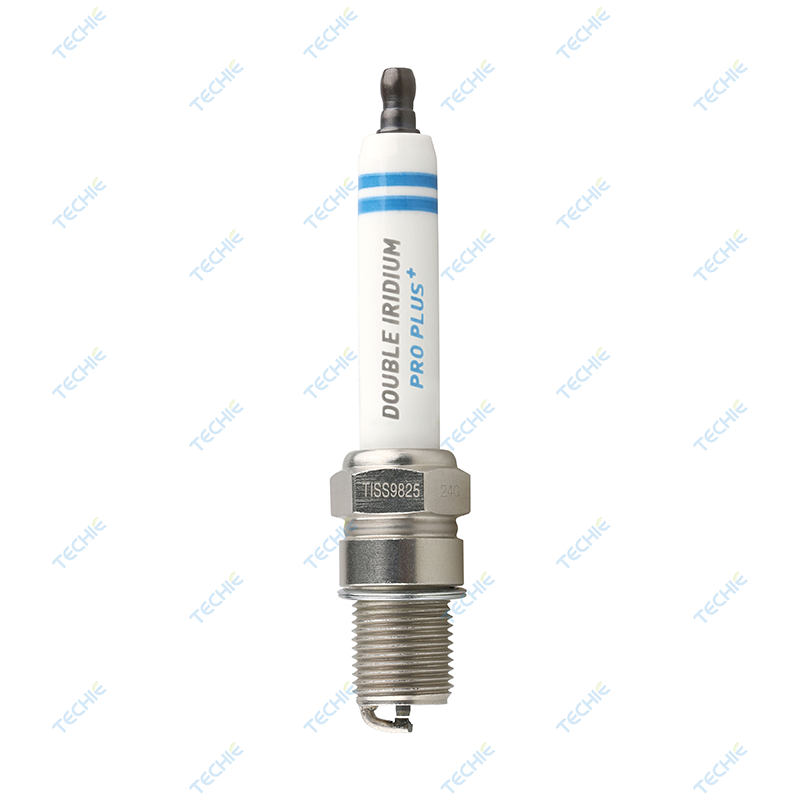

TISS9825

TECHIE premiums spark plugs for CAT C3520 series, Cummins QSV / QSK series, and Perkins 4000 series. Replaces Bosch 7305

     Engine Applications

    Caterpillar- G3520 / G3520 C (Biogas only)
    Cummins - QSV 81G / QSV91G / QSK 19G / QSK 45G / QSK 60G / QSK 38G / QSK 50G
    Guascor - FG180 / FGLD180 / FG240 / FGLD240 / FGLD360 / FGLD480 / SFGLD480
    Perkins - 4000 Series
    Superior - 1706G2 / 1712G1 / 2400 G Series
    Waukesha - P48 / L36 / H24 / F18 / L7044GSI

    Target applications:

    Industrial stationary engines
    Power generation/CHP
    Fast Power & Resilience
    Natural Gas
    Furnace Gas
    Landfill Gas
    Sewage Gas
    Biogas

    Why choose Techie Spark Plugs for optimal engine performance?

    STRICT QUALITY
    Developed by our engine experts, with continuous feedback from our customers—our high-quality spark plug portfolio meets our strict standards

    We run each and every spark plug through a rigorous evaluation during the design process. Our expertise shows in our delivery of several hundred thousand spark plugs every year."

    COST REDUCTION
    Due to a longer lifetime and less risk of unplanned downtime or repairs. Higher cost-efficiency compared with the original spark plug.

    FAST DELIVERY
    TECHIE boasts a fully stocked inventory and a robust network, enabling us to ship products immediately after payment and deliver them anywhere in the world within ten days.

    COMPREHENSIVE RANGE
    TECHIE offers custom-made spark plugs for virtually any gas genset worldwide, with our range covering over 95% of all gas gensets globally.


    Brand reference (Electrode design Ir/Ir)
    Beru:
    Super Green Spark Plug 18GZ 4-77/ 18GZ 477 / 18GZ 4 77 / 18GZ 6-77 / 18GZ 677 / 18GZ 6 77 / 18GZ20 / 18GZ 6-77-2 / 18GZ 6772 / 18GZ 6 77 2 /
    18GZ 7 / RB76N / RB76PP / RB75N / RB75PP
    Bosch:
    7305/ 7302
    Denso:
    GI3-1 / GI3-5 / GI 3-5
    Caterpillar:
    243-4291 / 2434291 / 243 4291 / 301-6663/3016663/301 6663/ 194-8518 / 1948518 / 194 8518 / 224-2700 / 2242700 / 224 2700 / 243-4291 / 2434291 / 243 4291 / 301-6663 / 3016663 301 6663"
    Champion:
    RB77CC / RB77N / KB75N / RB75N / RB77WPC / RB77WPCC
    / FB77WPCC
    GATEWAY:
    1175112 / 1177512 / 1176112
    ALTRONIC:
    L1863B / L1863IP / L1863DP
    Waukesha: 60999Z / 69919D
    Cummins:
    4302738 / 4098162  /  4010981  /  2866879
    STITT:
    RL807LL
    GUASCOR:
    7664292
    Waukesha:
    60999Z / 69919D / 60999U

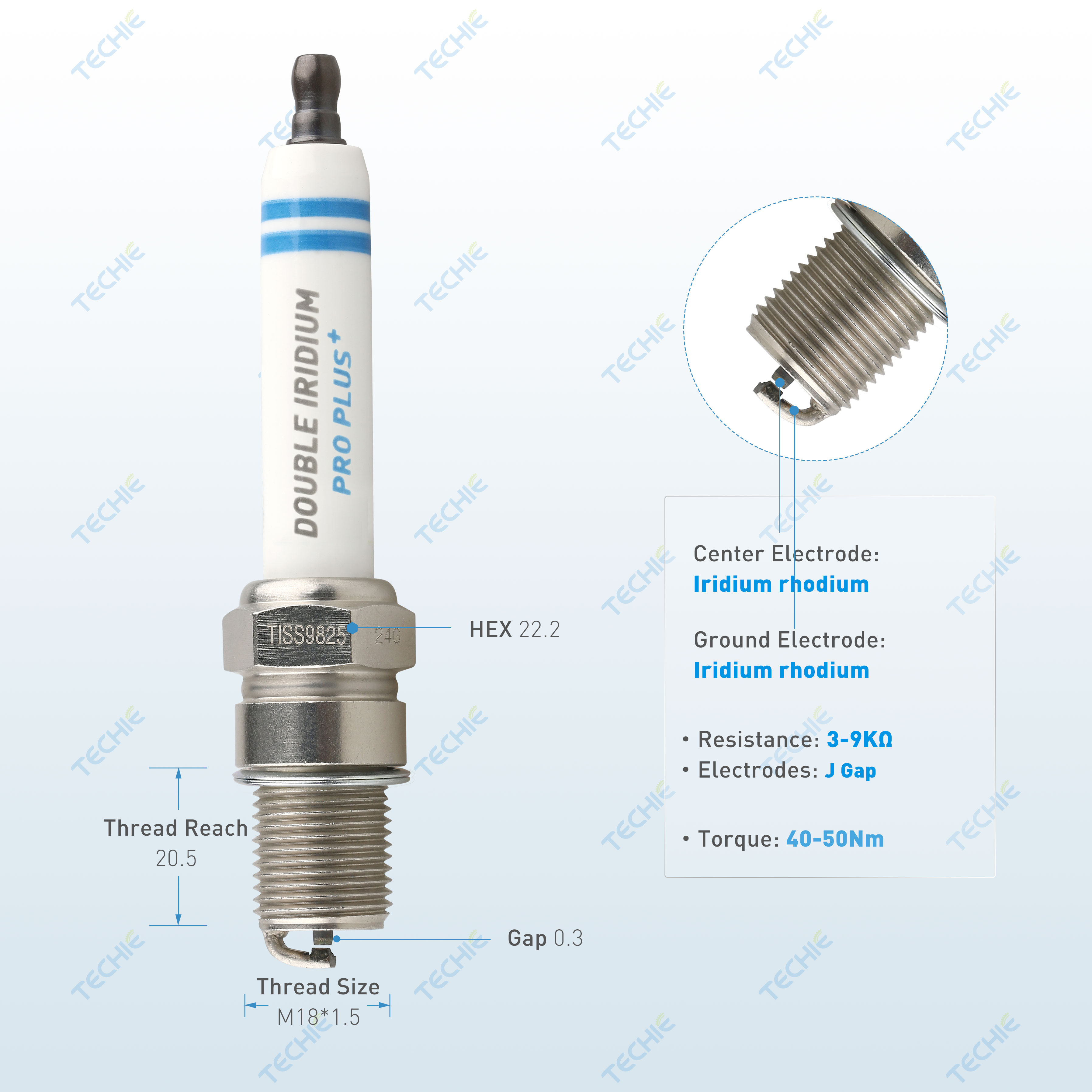

    Basic Technical Date
    Code: TISS9825
    Thread Diameter: M18*1.5
    Thread Reach: 20.5 mm
    Hex Size: 22.2 mm
    Gap Size: 0.25-0.3 mm
    Center Electrode: Iridium
    Ground Electrode: Iridium
    Resistance: 3-9 KΩ
    Torque Value: 45-50 Nm
    Service life: 3000-5000 h
    Net weight: 0.112 kg
    ·Hot Lock shell seal delivers superior push out performance.
    ·Easier to regap. Less susceptible to bridging the gap.
    ·Long Life Platinum / Iridium-Platinum.
    ·Optimized gas combustion for high efficiency & long service life.
    ·Robust particle-resistant design.
    ·Designed for high-compression and aggressive environments.
    ·Manufactured for superior performance and long-lasting durability.
    ·Withstands today's high-temperature/high-load service environments.
    ·IRIDIUM technology for environmental benefits, Supports CO2 reduction.
    ·INSULATOR. Manufactured with high-grade alumina powder for exceptional dielectric strength and thermal conductivity at high temperatures.
    ·360 ºLASER WELDING. State of the art manufacturing technology
    ·vital to Iridium center electrode quality.
    ·Low voltage for great ignition reliability & better flame front propagation and high erosion resistance.
