TISS9835
Engine Applications
● Caterpillar- G3500 Series / G3600 Series
● Cummins - Q19G, QSV81-V16, QSV91-V18,Q19G, QSV 81, QSV 91, QSK 19,QSK 38G, QSK 45G, QSK 50G,QSK 60G
● Guascor - FG180 / FGLD180 / FG240 / FGLD 240 / FGLD360 / FGLD480 / FGLD560
● Perkins - 4000 Series
● Superior - 1706G2 / 1712G1
● Wartsila - W25SG / W28SG / W34SG / W20V / 34SG / 34G
● Waukesha - AT Series / VGF-Serie / VHP Serie
Target applications
● Industrial stationary engines
● Power generation/CHP
● Fast Power & Resilience
● Natural Gas
● Furnace Gas
● Landfill Gas
● Sewage Gas
● Biogas
Brand reference (Electrode design Ir/Ir)
Beru:
Super Green Spark Plug 18GZ 4-77/ 18 GZ 4-77/ 18-GZ-4-77 / 18GZ 6-77 /18GZ6-77/ 18 GZ 6-77/ 18GZ 6-77-2/ 18 GZ 6-77-2/ 18-GZ-6-77-2
Bosch:
7305
Denso:
GI3-1 / GI3-5
GATEWAY:
1175112 / 1177512 / 1176112
Packager/Reseller reference (Electrode design Ir/Ir)
ALTRONIC:
L1863B / L1863IP / L1863DP
Waukesha:
60999Z / 69919D
Cummins:
4098162 / 4010981 / 2866879
Caterpillar:
194-8518 / 224-2700 / 243-4291 / 301-6663
|

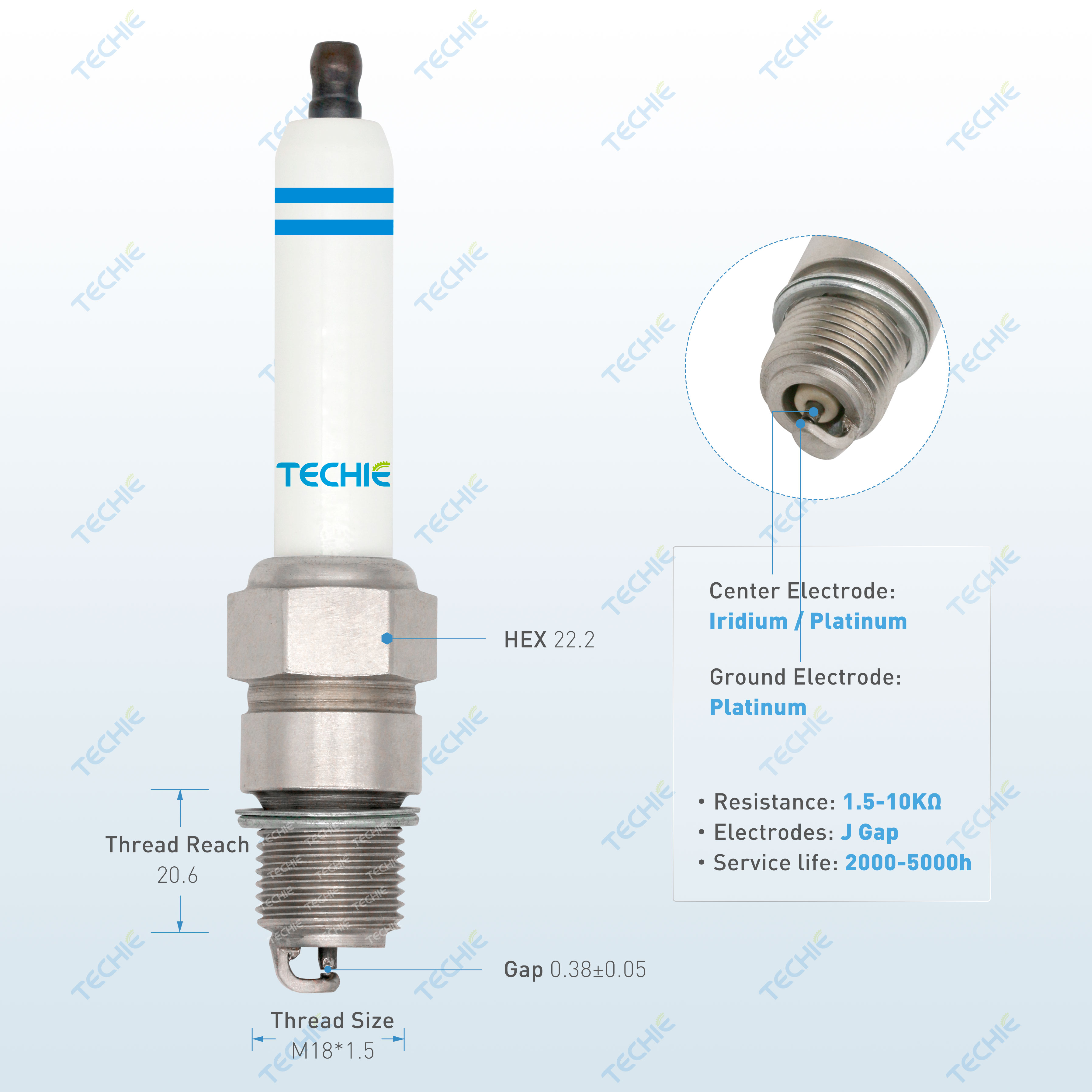

Code: |
TISS9835 |
|
Thread Diameter: |
M18*1.5 |
|
Thread Reach: |
20.5 mm |
|
Hex Size: |
22.2 mm |
|
Gap Size: |
0.25-0.3 mm |
|
Center Electrode: |
Iridium |
|
Ground Electrode: |
Iridium |
|
Resistance: |
3-9 KΩ |
|
Torque Value: |
45-50 Nm |
|
Service life: |
3000-5000 h |
|
Net weight: |
0.112 kg |
Our spark plugs are engineered to provide superior performance, durability, and efficiency in a variety of demanding conditions. Here are the key benefits in detail:
1. Hot Lock Shell Seal: The Hot Lock shell seal ensures superior push-out performance, providing a secure and reliable fit even in extreme operating conditions. This feature reduces the risk of seal failure, ensuring consistent performance over time.
2. Easy Regaping: Our spark plugs are designed to make regaping easier, saving time and effort during maintenance. Additionally, they are less susceptible to bridging the gap, which ensures optimal ignition and consistent engine performance.
3. Long-Life Platinum and Iridium-Platinum Materials: Constructed with premium Iridium materials, these spark plugs offer exceptional longevity and wear resistance. This means fewer replacements, reduced maintenance costs, and enhanced reliability.
4. Optimized Gas Combustion: Engineered for high efficiency and long service life, our spark plugs promote optimized gas combustion. This results in better fuel economy, reduced emissions, and enhanced engine performance.
5. Robust Design: The particle-resistant design ensures reliable operation in high-compression and aggressive environments. This robustness makes our spark plugs suitable for a wide range of modern engines.
6. High-Temperature/High-Load Resilience: Manufactured to withstand today’s demanding high-temperature and high-load service environments, our spark plugs maintain performance even under extreme stress.
7. IRIDIUM Technology: Featuring advanced Iridium technology, our spark plugs support CO2 reduction and deliver environmental benefits. They provide superior ignition and cleaner combustion, contributing to a greener planet.
8. Premium Insulator: The insulator is made with high-grade alumina powder, ensuring exceptional dielectric strength and thermal conductivity at high temperatures. This enhances overall reliability and durability.
9. 360-Degree Laser Welding: State-of-the-art 360º laser welding technology is employed to produce high-quality Iridium centre electrodes, ensuring precision, strength, and consistency.
10. Low Voltage Operation: Designed to operate efficiently at low voltage, our spark plugs deliver great ignition reliability, high erosion resistance, and superior performance in challenging conditions.
With these advanced features and benefits, our spark plugs set a new standard for performance, durability, and environmental responsibility, making them the ideal choice for modern automotive needs.
